Interactions, Taxon/Genome-Level¶
Overview¶
The Interactions Tab provides experimentally and computationally derived host-pathogen protein-protein interaction data and visualizations from more than 15 public repositories, including STRINGDB, with a total of 55 million protein-protein interactions. Interactions are available at both the genome and gene levels, and are presented in tabular and graph format.
See also¶
Accessing the Genome-Level Interactions Table¶

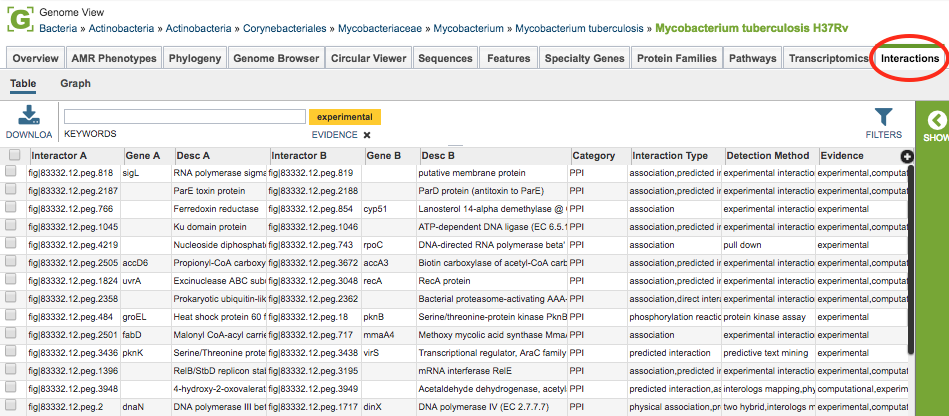

Clicking the Interactions Tab in a Genome View displays the Interactions Table, listing of all of the interactions associated with the genes in that genome.
The tables include the following columns (fields) for each interaction, and are based on PSI-MITAB format:
Interactor A: ID (unique primary identifier) for one of the two interacting features (protein-coding genes).
Gene A: Gene name for the feature, if available.
Desc A: Protein product (functional annotation) associated with the feature.
Interactor B: ID for the other of the two interacting features.
Gene B: Gene name for the feature, if available.
Desc B: Protein product associated with the feature.
Category: Category of interaction:
PPI = protein-protein interaction
HPI = host-pathogen interaction
Interaction Type: Interaction types, taken from the corresponding PSI-MI controlled vocabulary.
Detection Method: Interaction detection method, taken from the corresponding PSI-MI controlled vocabulary.
Evidence: Evidence of the interaction:
Experimental = identified by laboratory method
Computational = predicted by computational method
Interactions Table Tools¶
Within this table you may do the following:
Download the entire contents of the table in text, CSV, or Excel format by clicking the Download button above the table on the left side.
Rearrange and narrow the list of genomes in the table via sorting (using column headers), keywords (using the Keyword box), and filtering (using the Filters tool).
Filter Tool¶
As with all tables, the Filters tool is available to narrow the display of the items in the table, show below:

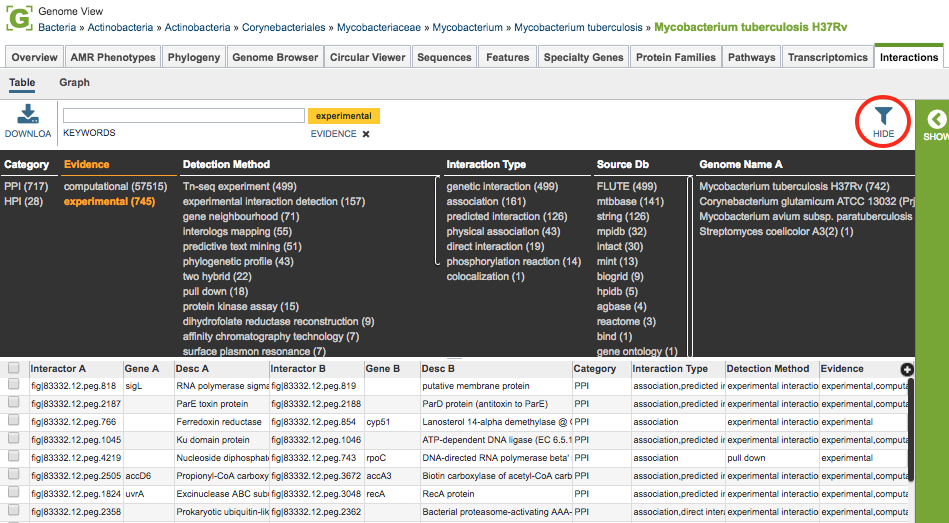

Clicking on the Filters button at the top right of the table opens the Filter Panel above the table, displaying column names from the table and values for those columns with counts of occurence. Clicking on the filter values narrows the genomes displayed in the table to those matching the chosen filter values. Clicking the Hide button closes the Filter Panel. Clicking the Apply button removes the non-matching genomes and resets the scope in the Taxonomic View to only the genomes matching the filter criteria. More details are available in the Filter Tool Quick Reference Guide.
Interactions Viewer¶

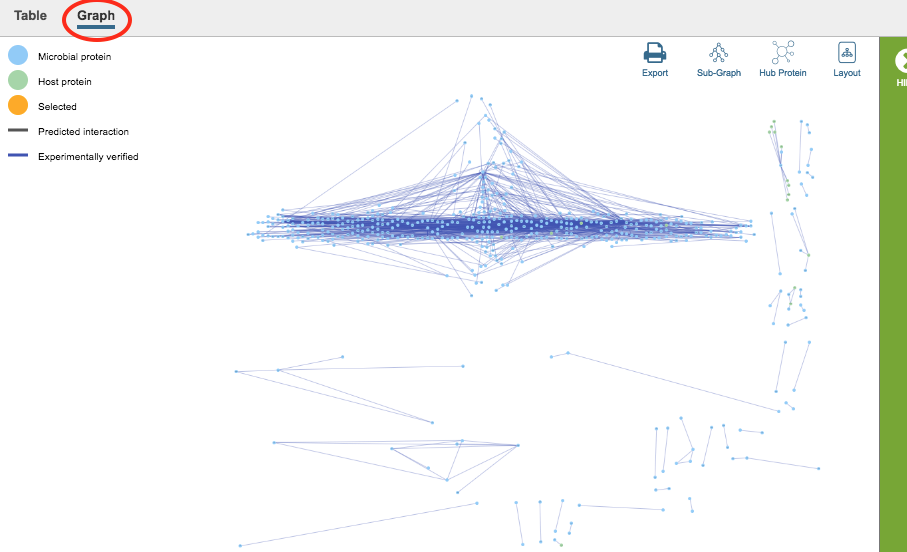

Clicking the Graph option at the top left of the table displays the Cytoscape-based Interactions Viewer.

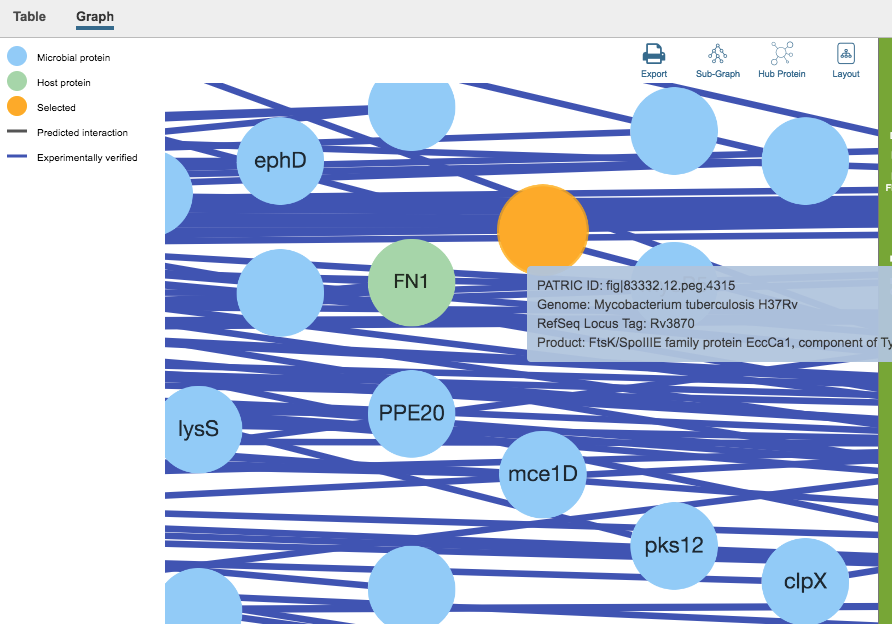

In the graph, proteins (interactors) are displayed as nodes and the interactions between the nodes are displayed as lines. Scrolling with the mouse zooms in/out in the graph. Clicking and dragging with the mouse moves the graph in the display. Gene names, where available, are displayed on the nodes. Mousing over a node or line displays detailed information about that interactor/interaction. Clicking and dragging on a node moves it in the graph, allowing rearrangement for better visualization.
Additional options are available from the upper right area of the graph. These include the following:
Export: Creates a png image file of the graph and makes it available for saving to disk.
Subgraph: Auto-selects subgraphs with more than 5, 10, or 20 nodes, or auto-selection of the largest subgraph.
Hub Protein: Auto-selects hub proteins with more than 5, 10, or 20 nodes, or auto-selection of the most connected hub
Layout: Changes the layout of the display, with several options available
Action buttons¶
After selecting one or more of the nodes by clicking it (ctrl-clicking to select multiple nodes), a set of options becomes available in the vertical green Action Bar on the right side of the table. These include
Hide/Show: Toggles (hides) the right-hand side Details Pane.
Download: Downloads the selected items (rows).
Copy: Copies the selected items to the clipboard.
Feature: Loads the Feature Page for the selected feature. Available only if a single feature is selected.
Features: Loads the Features Table for the selected features. Available only if multiple features are selected.
FASTA: Provides the FASTA DNA or protein sequence for the selected feature(s).
MSA: Launches the Multiple Sequence Alignment (MSA) tool and aligns the selected features by DNA or protein sequence in an interactive viewer.
Group: Opens a pop-up window to enable adding the selected sequences to an existing or new group in the private workspace.
Sources for data¶
The protein-protein interaction data comes from these 15 sources.
More details are available in the Action Buttons Quick Reference Guide.
